Roller Suspension Concrete Pipe Making Machine

Working Principle:

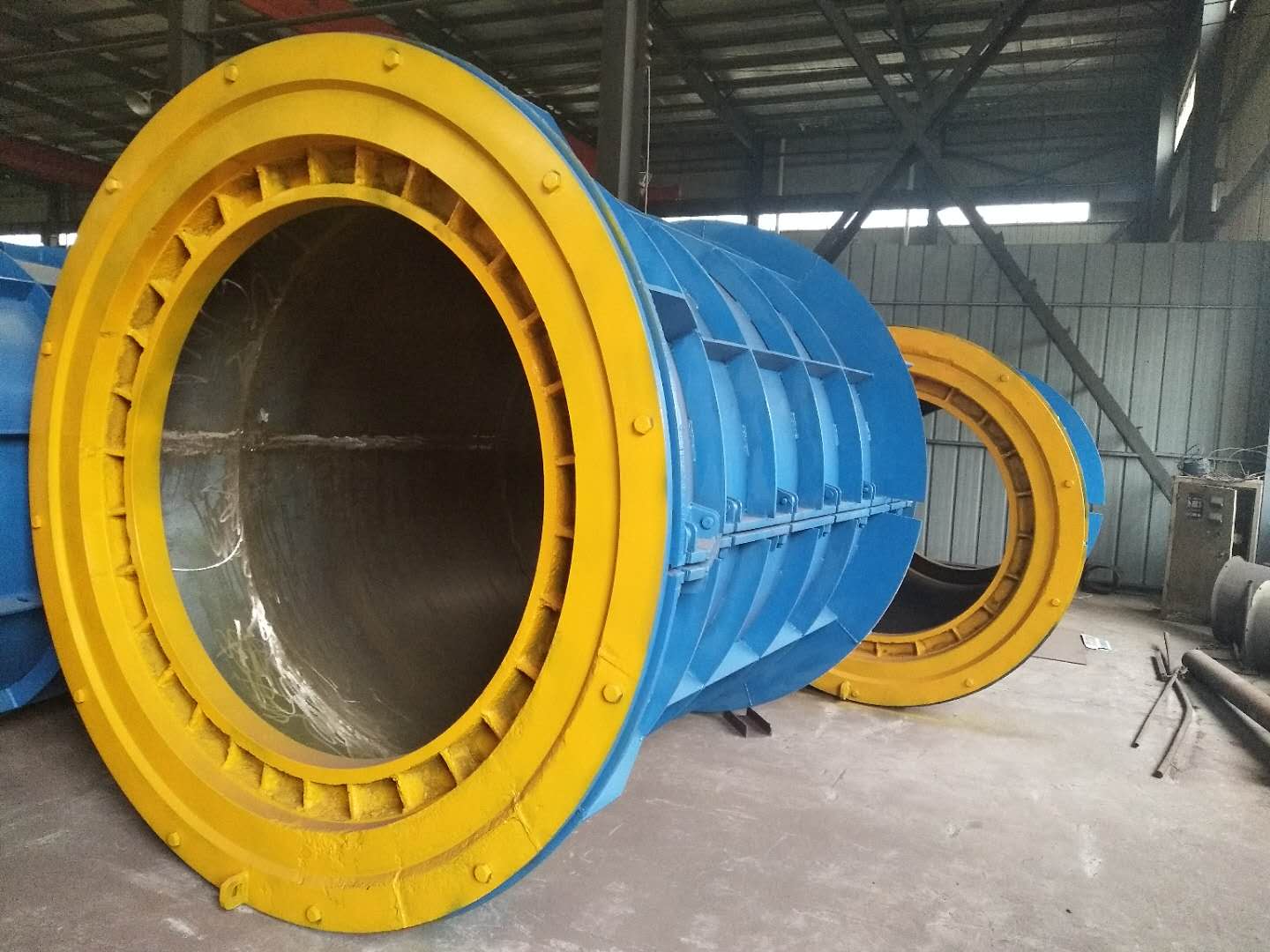

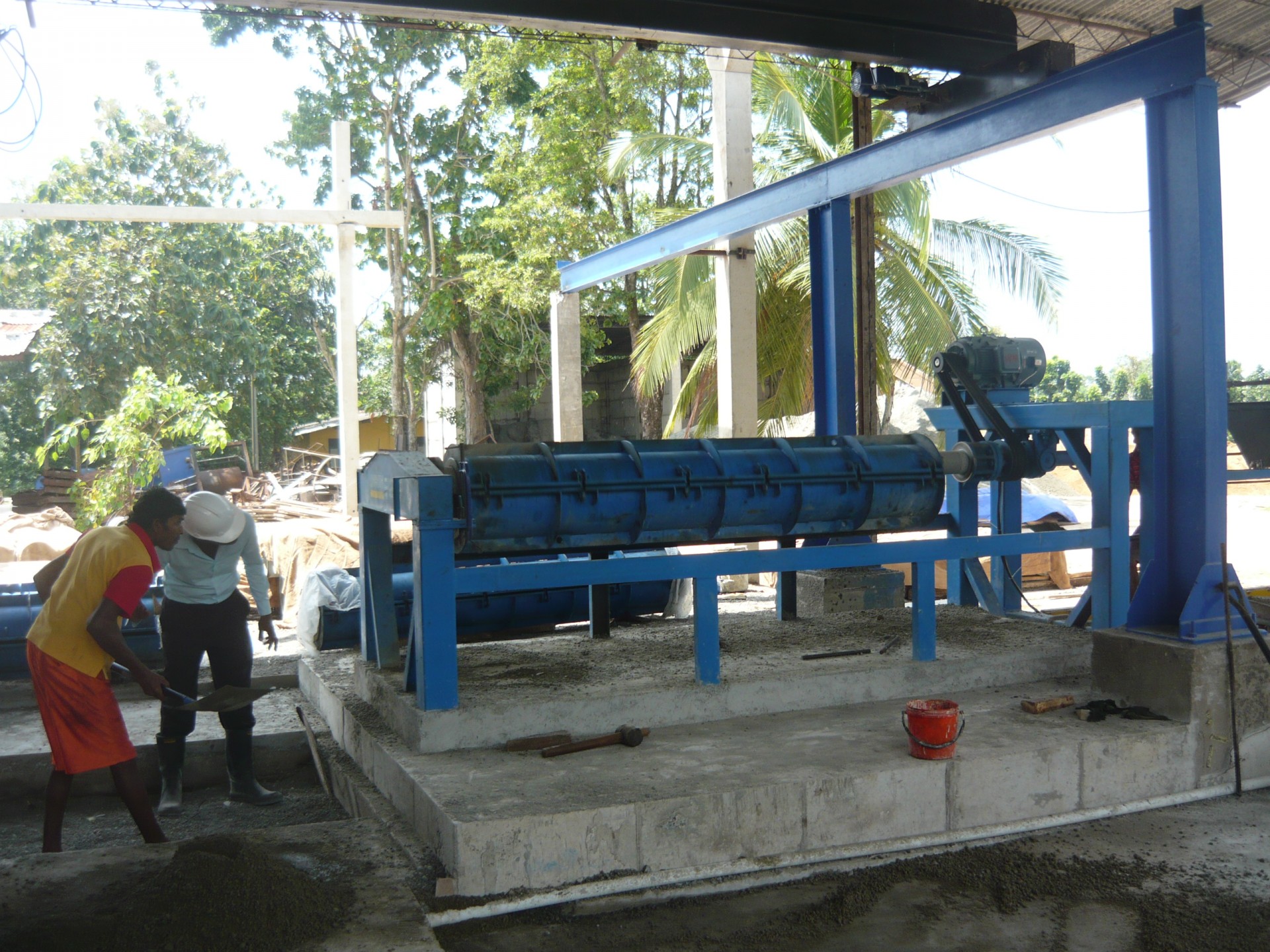

This XG series Concrete pipe machine is with simple structure, the Suspended roller passes through the pipe mould. Driving by the motor, the transmission shaft will drive the roller rotating at the regulated speed. Because of the friction force between the roller and Stop Ring at the two ends of mould, the pipe mould will be drove rotating at the same direction as the roller.

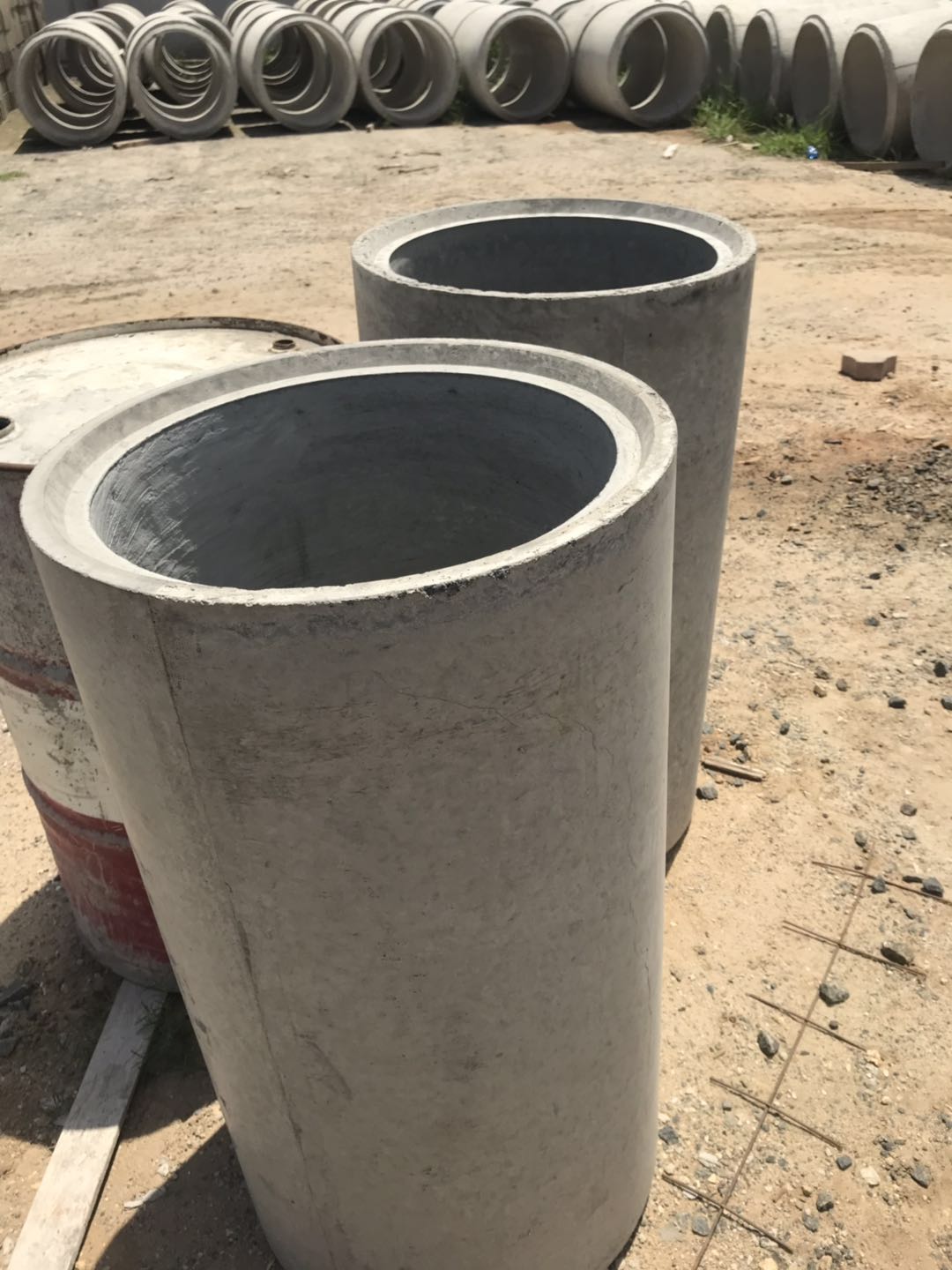

 By manual feeding concrete or conveying machine, the concrete mixture into the mould will be adhere to the inner wall of mould, and become solid, intensity at major function          of the roller compressing force and Centrifugal force, and form the standard quality pipe.


Features:

1.      Wide Production Range: Inner Diameter from 200-2500mm, length 1-4 meter;

2.      Different Pipe end joint: Flat end; Male&Female end; Spigot&Socket end;

3.        High efficiency, short production time, every pipe needs several minutes;

4.      With hard dry casting concrete, high intensity, and better strength;

5.      No polluted slurry discharge, environment friendly, also lower noising;

6.       Our CO2 Arc Welding, and Plasma Cutting machine promise higher quality.

     Technical Details



Item

XG600

XG1500

XG2000

Pipe Diameter

300-600mm

800-1500mm

1500-2000mm

Pipe Length

1-4   m

1-4 m

1-4 m

Roller Diameter

118mm

227mm

325mm

Roller Material

45# Seamless Steel tube   with wall thickness 40-100mm

Motor Power

VF-15-23 KW

VF-37-55 KW

VF-75-132 KW

Rotation Speed

140-230 r/min

100-200 r/min

80-120 r/min

Production time

3-5 mins

6-10 mins

10-15 mins
