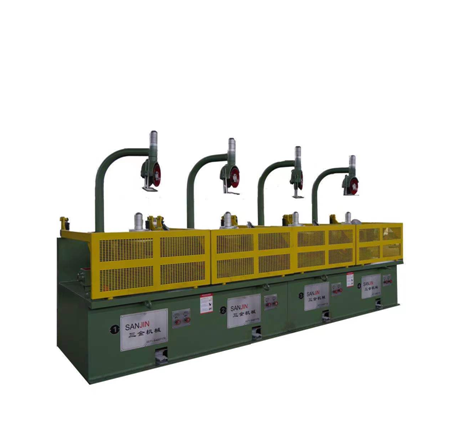

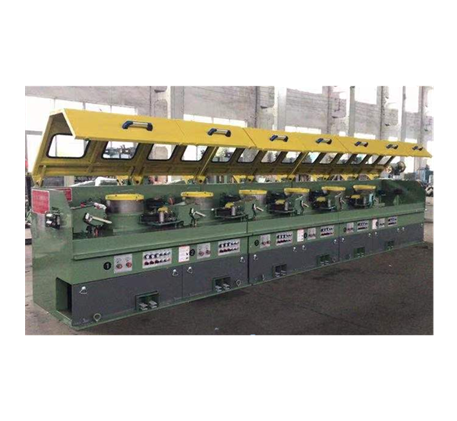

straight line wire drawing machine
LZ10/250 . LZ12/350. LZ11/400. LZ11/400. LZ6/560. LZ6/600. LZ10/700. LZ 9/800. LZ9/1200
| Type | 250 | 350 | 400 | 560(600) | 700
| 800(900) | 1200 |
| Drum's diameter | 250 | 350 | 400 | 560(600) | 700 | 800(900) | 1200 |
| Drawing times | 10 | 12 | 11 | 6 | 10(High carbon wire) | 9(High carbon wire) | 9(High carbon wire) |
| Max.wire inlet | 2.0 | 2.8 | 3.0 | 6.5 | 6.5-8 | 6.5-12 | 12-14 |
| Min.wire outlet | 0.5 | 0.8 | 1.0 | 2.5 | 1.8-2.5 | 2.0-4.0 | 4.0-5.0 |
| Finished wire speed | 30 | 30 | 20 | 12.5 | 12 | 10 | 7.5 |
Motor power Variable frequency motor or direct drive motor |
11 |
11-18.5 |
15-22 |
22-37 |
45-90 |
55-110 |
110-132 |

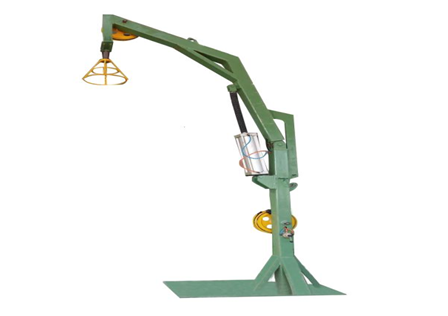

Pulling up style Pay-off Stand
for Inlet wire coil input covers a small area. The air cylinder telescopic mode is adopted to adjust the height of the upper
drawing type pay off frame of the pay off arm, which is convenient for threading. And the wire is not easy to be disordered. And
it is equipped with the safety of disordered lines Stop switch

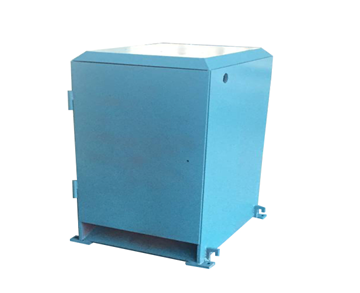

Closed non powered shelling machine
for wire 5.5-8mm The machine uses 5 peeling wheels to mechanically peel the wire in different directions, so that the oxide skin
on the wire surface is completely peeled off, and the oxide skin is collected in the box, which will not cause environmental
pollution

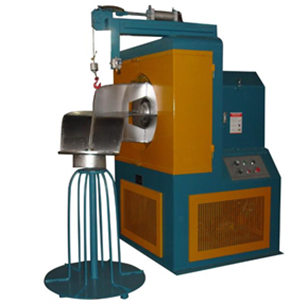

QMSB-560 Elephant nose shape wire take-up machine
1) Motor: 22Kw Variable Frequency 2) Inverter , HuiChuan Brand
3) 9 wheel V shap two direction straighter
4) take up drum 560mm,
coated HRC62
5) about 500KG per coil
6) height of the coiler: 980mm
7) it can be controlled together with drawing machine also can
stop and start seperately

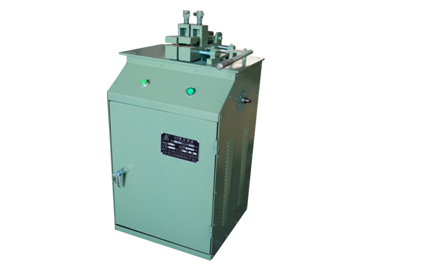

UN-10 Butt welding machine
1）max. Diameter: 8.0mm 2) min. Diameter: 2.0mm
3) Rated Capacity: 10mm
ZE-96 Rolling machine
1）Rolling Diameter： 96mm 2）max. rolling wire: 8.0mm
3) Min. Rolling wire: 2.0mm
4) motor: 3kw
small pack coiler
small pack coiler with cylinder
