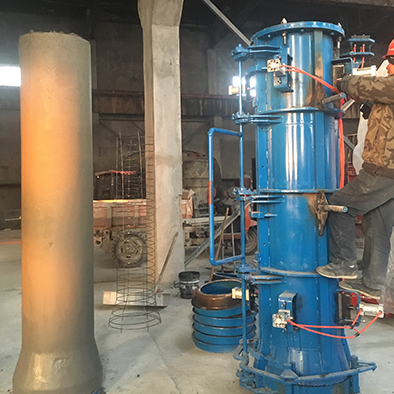

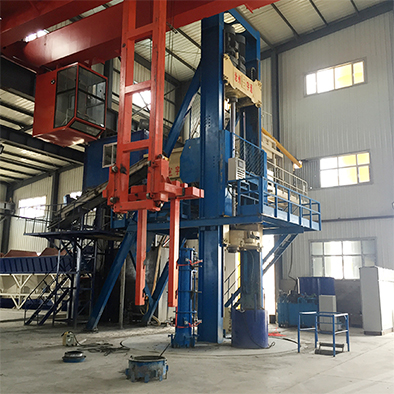

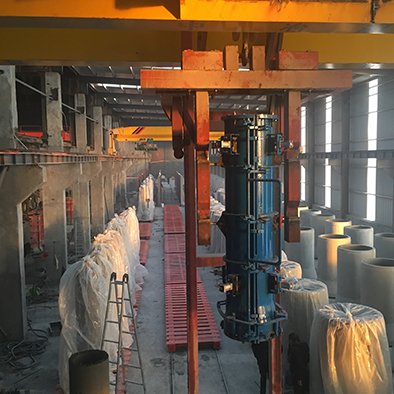

Radial Press Concrete Pipe Machine 300-1200


Radial Press Concrete Pipe making machine, is the new technology to produce reinforced concrete pipes. High efficiency, higher Automation, easy to operate, and very few labor, only Need natural curing, fast to de-mold immediately. it is more and more welcomed by customers around the world. The whole electronic system and hydraulic system are both adopted the digital control, improving the handling performance and control accuracy of the whole machine. It will become the best choice for making small diameter RCC pipes 300-1200mm.











Technical Details:

Item

Value

Item

Value

Total Power

233.5kw

Press Head Speed

30-150r/min

Head Presser Stroke

3600mm

Press Head Max. Torque

100-5500Nm

Spigot Ring Stroke

2500mm

Dynamic Head lifting speed

5-20mm/s

Vibrating device Stroke

400mm

Concrete feeding Speed

200-900mm/s

Concrete hopper Volume

2.8 m3

Chassis speed

2r/min

Pressure for Hydraulic system

16MPa

Compressed air pressure

0.4-0.7MPa

Dimension LxW

10250 mm×9000 mm

Machine Frame Height

12000 mm

Ground Pitch Depth

2260 mm

Weight

32000 kg

Working Temperature

5-35°C

Maximum noise

90 dB(A)

humidity

25-80%
