High Speed cage machine

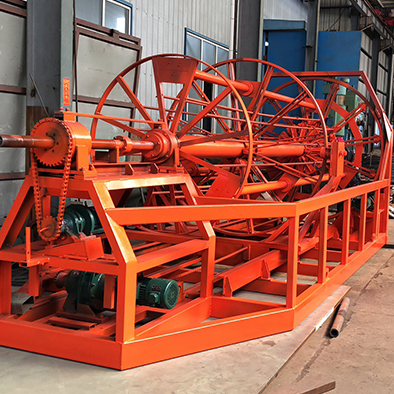

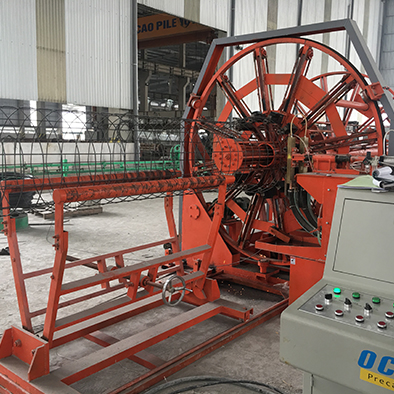

High Speed Automatic Cage welding machine for RCC pipe HGZ300-1200

It is the special equipment matched with Radial Press concrete pipe machine, and Vertical vibration pipe machine 300-1200mm. The main plate speed can reach 21r/min. the welding time for each spot will not exceed 50ms, big welding electric current (max. Short Circuit current around 24000A); The water cooling system for electrode and transformer, which helps improve its life by 5 times.

Main Technical Details:

Cage diameter/Length for pipe


4 Motors Power:


Diameter Longitude bar/Spiral bar

3.2-8mm( be customized to 10mm)

Pipe Joint

Flush joint/ spigot &socket joint

Control system

PLC control+ Touch Screen

Speed of Rotating

Max. 21 r/min
