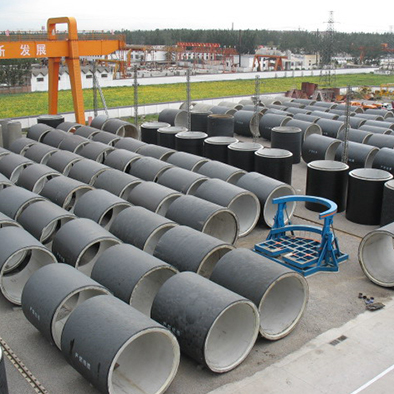

Our company cooperates with the top manufacturer of the equipments for the PCCP production. The PCCP pre-stressed concrete Cylinder Pipe making machine is a new composite pipe for water supply. It consists of concrete pipe core, Steel cylinder, spiral pre-stressed wire winding, cement mortar spray. Its working pressure can reach up to 2.0 MP, and with the good performance of Steel pipe and Concrete pipe. There are two kinds PCCP pipe, PCCL (the Centrifugal spinning technology for diameter 600-1200mm), and the PCCPE (the Vertical vibration wet casting technology for diameter 1200-4000mm). Also the with double rubber ring joint and single rubber ring joint, the Standard length is 5 meter. The special size of elbow pipe, and fittings will be custom made.
Equipment List for the PCCP production:
1. Rolling machine
Form the spigot and socket
2. Edger machine
Form the grooves of single or two rubber ring for the spigot
3. Expander machine
Promise the precise size of spigot and socket ends.
4. Cylinder Screw welder
Welding machine for Cylinder
5. Assemble table machine
Assemble and weld the spigot, cylinder and socket end.
6. Cylinder Hydraulic press
Test the cylinder

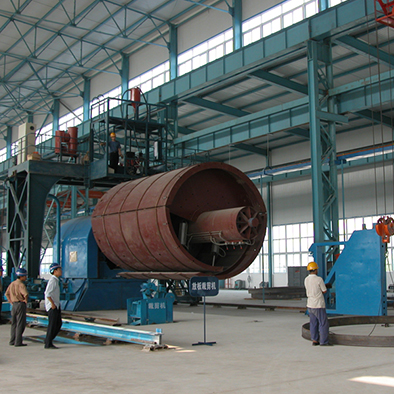

7. Centrifugal Spun machine
8. Spinning pipe mould
Centrifugal spun pipe moulds
9. Vertical Casting mould
10. Horizontal Pre-stressed Wire Winding machine

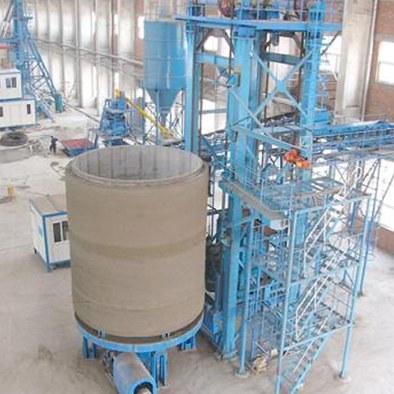

11. Vertical Pre-stressed wire winder
DN1200-4000mmVariable speed control , automatic
12. Horizontal mortar sprayer
13. Vertical Mortar Sprayer
14. PCCP pipe test machine
